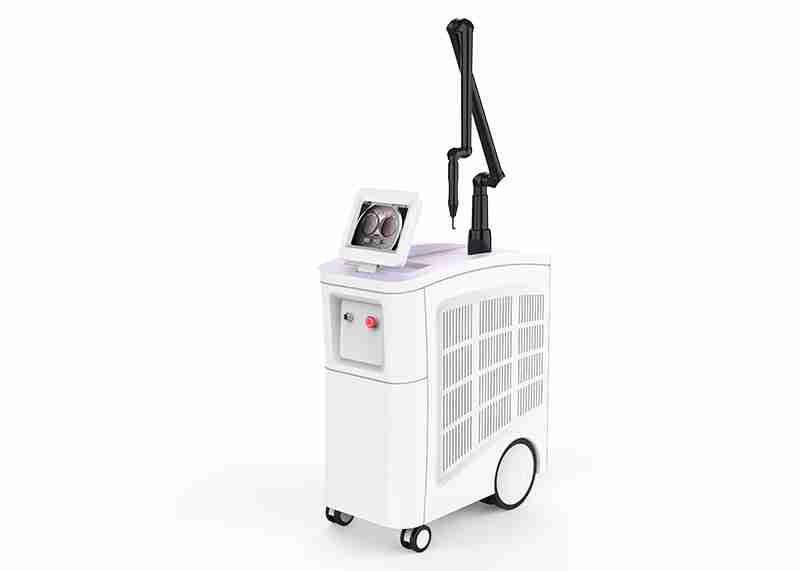

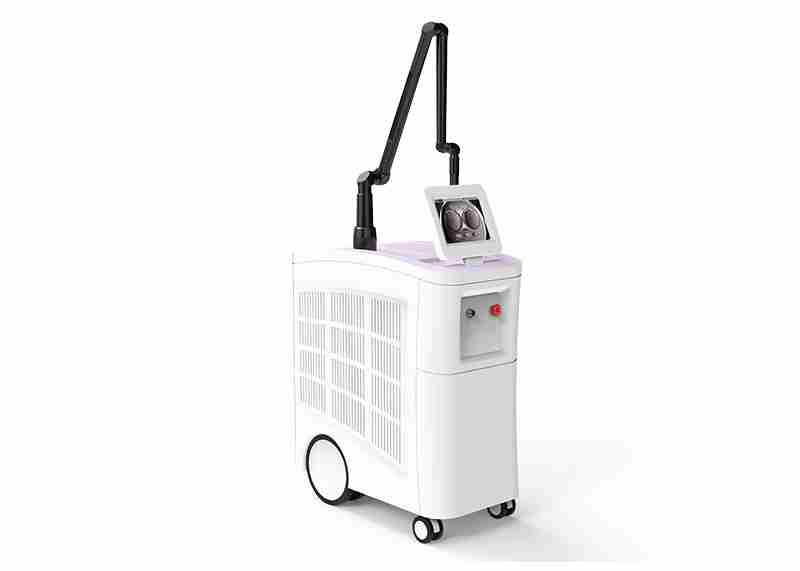

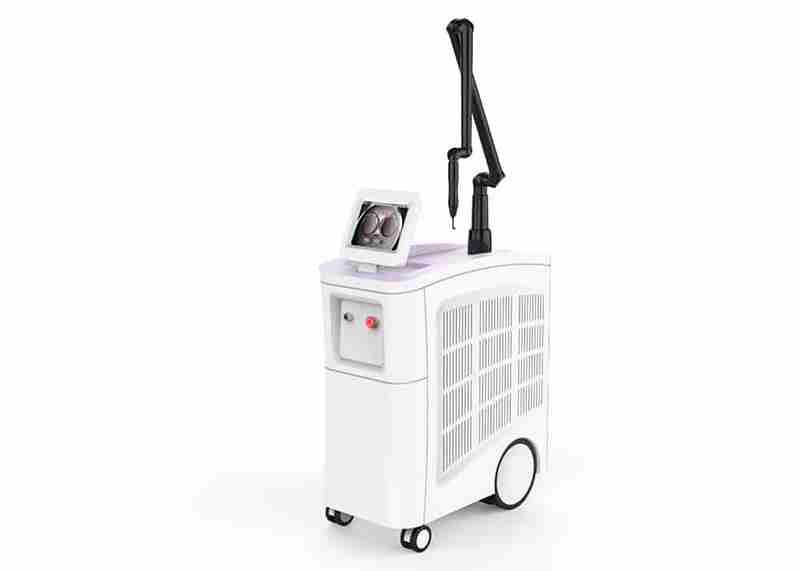

Q-Switched ND YAG Tattoo Removal Laser Machine KR-Q5

Q-Switched ND YAG Tattoo Removal Laser Machine KR-Q5 - Krlaser

Q-Switched ND YAG Tattoo Removal Laser Machine Solid-state laser generator & MOPA amplification technology, Three treatment modes: SP, LP, PTP, "Flat-top" mode, homogeneous distribution of energy, Korea Imported 7 Jointed Arms.It can remove all kinds of pigments and tattoos effectively and safely.

Treatment Theory

Adopting the explosive effect of light, Super Picosecond Laser with super high energy can quickly pass through the epidermis into the dermis containing the pigment mass and make the pigment mass break into powder instantly, which are then eliminated through the body’s metabolic system.


Super Picosecond Laser delivers energy so rapidly (ten trillionths of a second) that tiny particles that make up pigment and tattoo ink vibrate and shatter with little heat. Therefore, it won’t burn surrounding tissue and bring damage and discomfort.


Super Picosecond Laser is a quick and easy, non-surgical and non-invasive laser skin treatment for chest, decollete, face, arms, legs, or other body parts.


SP (Single Pulse):

  • A single pulse with energy and adjustable spot for those a stronger treatment is needed.
  • Remove all kinds of tattoo, Remove eyebrow tattoo, Remove eye line, Remove lip liner, Remove eyelid tattoo, etc.

PTP (Double Pulse):

  • Dual pulse system is less aggressive than with single pulse and with fewer side effects and good results.
  • Remove freckles, superficial and deeper speckles, age pigment, birthmark, etc.
  • Treat skin lesion of the blood vessel, hemangioma, red blood streak, etc.

LP (Long Pulse):

  • 300ms pulse for anti-wrinkle and skin rejuvenation.
  • Cure acne, scar and pores missing etc.


  • Solid-state laser generator & MOPA amplification technology, the energy is more stable and effective.
  •  Treatment probes: Standard probes: 1064nm probe for black tattoos, sun spots, coffee spots, chloasma, skin rejuvenation; 532nm probe for red/brown/yellow tattoos, Ota, freckles, port wine stains, Optional probes: 650nm probe for green tattoos removal; 585nm probe for blue and purple tattoos removal; Fractional probe for treating large pores, acne marks.
  •  Three treatment modes: SP, LP, PTP, perfect for all complicated types of pigmentation.
  •  7-joint articulated arm imported from Korea, automatic recognition technology, transmission efficiency up to 85%.
  •  Laser lamps and lenses are imported from the USA (real pulse duration 500PS tested by oscilloscope).
  •  “Flat-top” mode, homogeneous distribution of energy: energy can be delivered efficiently to treatment area, maximizing the effect and minimizing damage to surrounding tissues.

Before & After


  • People who have diseases such as heart diseases, mental diseases, epilepsy, diabetes, etc.
  • Children who are under seven years old (children who are above the age should ask for medical advice).
  • Women in pregnant, lactation or menstrual period.
  • People with malignant lesions in the treatment area.
  • People who are planted with a pacemaker, steel nails or other metals.
  • People who have taken medicine like antibiotics and anticoagulants in a long time.
  • People who have a physical scar.
  • People who have received plastic surgery should follow medical orders.


Power 3000W
Wavelength 1064nm, 532nm (585nm, 650nm optional)
Screen 10.4” color touch display
Treatment mode SP, PTP, LP
Output Energy 1300mj@1064nm, 550mj@532nm
Frequency 1Hz ~10Hz
Spot size 2mm ~10mm
Pulse duration 600PS@1064nm, 500PS@532nm
Cooling system Water + Wind cooling system
Voltage 220V/50HZ, 110V/60HZ
Package weight 110kg & 5kg
Package size 96*90*50cm & 73*37*18cm
